Saturday, March 20, 2010

Where a DB Request Spends Time in DB2 9.7?

This title may sound somewhat familiar if you have been following my Blog for over a year. More than a year ago, I wrote about the shortcomings of time spent monitoring in DB2 (see my post “Where a DB Request Spends Time”). Last year when DB2 9.7 was released (around June 2009), I was thrilled to see “Time-spent monitor elements are more comprehensive” under monitoring enhancements in DB2 9.7. Since then I have been thinking about installing DB2 9.7 on my laptop and having a closer look at this enhancement. Finally, I got chance to do so and here I am going to share my findings.

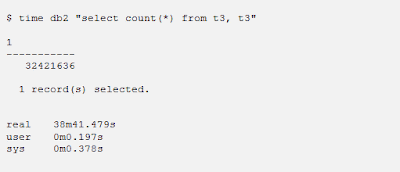

Without spending too much time trying to come up with a more complex workload, I created a table t3 with similar structure as syscat.columns and populated it with rows from syscat.columns. Then I ran a query against this table as shown below. The real elapsed time of this SQL was more than 38 minutes (long enough for my analysis purpose).

Listing 1


Before I start analyzing the time spent by above SQL, let me list some of the queries that I used for this analysis.

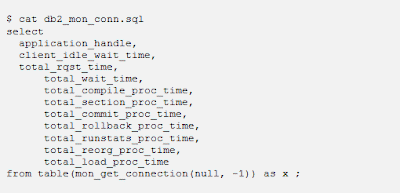

Following query gives the client idle wait time, total request time, total wait time and various processing times for each connection in the database.

Listing 2

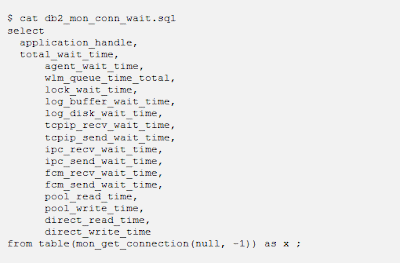

If you are interested to drill down the total wait time of each connection, following query can be used.

Listing 3

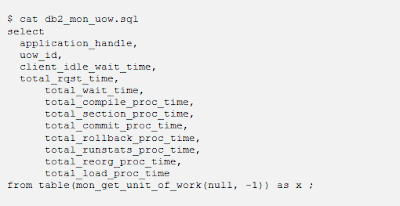

A connection can have more than one Unit of Work (UOW) and if you are interested to monitor the time spent on UOW level, following query can be used.

Listing 4

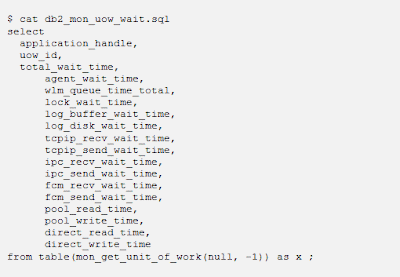

Again, if you want to drill down the total wait time of each UOW, following query can be used.

Listing 5

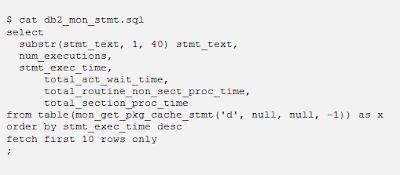

If you are interested to monitor time spent on statement level, you can use mon_get_pkg_cache_stmt table function. Following query gives info on time spent by top 10 dynamic SQL statements (sorted by statement execution time).

Listing 6

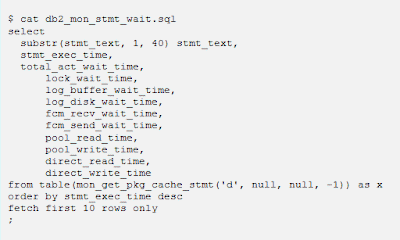

If you want to drill down the wait time of dynamic SQL statements returned by above query, following query can be used.

Listing 7


In all the above monitoring queries (Listing 2 through 7), I have intentionally left the WHERE clause as you can use the appropriate WHERE clause as per your specific need. Also, the result set of monitoring table functions used in above queries can be altered through the input parameters passed to those table functions. Check the documentation of these table functions for more detail.

In each of the above monitoring queries, SELECT list has indentation and the indented columns give the individual components of the time spent monitoring element selected just before the indented columns. “Hierarchy of time-spent monitor elements” on DB2 Information Center was very helpful while writing above queries. Also, you might have noticed the most of the wait time components are suffixed with “_wait_time” and similarly most of the processing time components are suffixed with “_proc_time”. Any remaining ambiguities get clarified by looking at the documented hierarchy of time-spent monitor elements.

Though, I found the time-spent monitoring elements available at each level (Connection, UOW, Statement) comprehensive, here I am going to present only the UOW level time spent monitoring for the SQL execution in Listing 1.

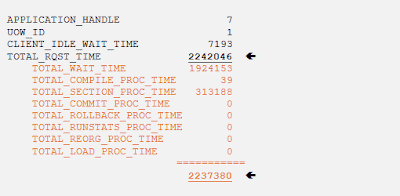

Here is the output of db2_mon_uow.sql at the end of SQL execution in Listing 1. To make it more readable, I have presented it vertically.

Listing 8


In the above output and in fact in all the columns selected in Listing 2 through 7, the unit of time is millisecond. As you can see total request time (~2242 seconds) is very close to sum of various time components (~2237 seconds) that constitutes the total request time. Even a minor difference (5 seconds or 0.2 %) can be clearly explained by “Other” category as documented under “Hierarchy of time-spent monitor elements” on DB2 Information Center. Though, the real elapsed time as shown in the output of “time” command (in Listing 1) is higher than the total request time reported by DB2, it can be due to the difference in time recording boundaries used by “time” command versus what’s used by DB2.

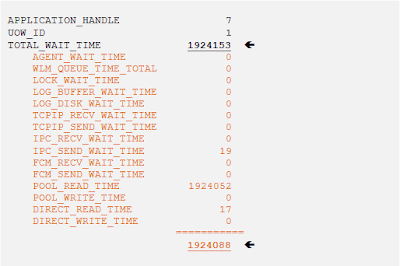

Similarly, if you want to drill down the total wait time, here is the output from db2_mon_uow_wait.sql

Listing 9


The difference between total wait time and sum of individual wait time components is just 65 milliseconds.

With this time spent monitoring enhancement, now we can easily find out where a DB request is spending maximum time and accordingly address any problem areas in database if present. Kudos to IBM DB2 team for putting this enhancement in DB2 9.7.

Tuesday, February 02, 2010

DBA's Strengths

Did you ever get so engrossed doing something that hours passed by and you did not even realize? It might have happened while watching an interesting movie or playing your favorite video game or similar fun stuff. But did it ever happen while doing your DBA job, the job which pays you salary? I am sure it must have happened unless you are in a completely wrong profession. However, how often does it happen? Do you enjoy doing everything that you have been doing as a DBA? Most likely your answers would be “rarely” and “no”. Imagine how productive you would be if we flip this situation such that most of your job related activities fall under the category which you enjoy doing? Such activities are basically your strengths and you have a natural inclination towards such activities.

Marcus Buckingham, a speaker, trainer, researcher and author has been involved in finding solutions to exactly this type of workplace issues. I got chance to read some of his books (First Break All the Rules, Now Discover Your Strengths, Go Put Your Strengths to Work) and a core finding in his books can be summarized as:

We should try to identify our strengths and focus on our strengths to further grow it rather than spend all our time and effort on our weaknesses. Also, the best managers work hard to understand what their employee’s true talents/strengths are and then shape the job to allow the employee to perform to their maximum. It doesn't pay to focus on people's weaknesses; focus on their strengths.

In his book “Go Put Your Strengths to Work”, he lists following four signs that can help you identify your strengths:
  • When you do it, you feel effective
  • Before you do it, you actively look forward to it
  • While you are doing it, you feel inquisitive and focused
  • After you’ve done it, you feel fulfilled and authentic

If you are interested to learn more about his works, I would recommend reading his books. I would not be able to create the same impact in this blog even if I try to. However, here I would like to analyze his suggestions in context of DBA job and DBA team.

Traditionally, DBA roles have been classified as Application DBA, System DBA, Development DBA, Production DBA etc. These are very broad classifications and DBAs under each category still end up doing many of the activities which are not their strengths and they don’t enjoy doing it. The challenge is how to setup a DBA team where each DBA enjoys doing most of the activities that he is doing. First I will approach this problem from a DBA Manager’s perspective and then from an individual DBA’s perspective.

First of all, each DBA in the team should try to find out if they even like doing DBA job or they should pursue a different profession. After this high level elimination round, the team should be left of only those DBAs who really like being a DBA. Next we have to focus on how to distribute the responsibilities in such a way that most of the DBAs enjoy doing most of their assigned activities. For that, we have to first list down the activities on a more granular level that can really be associated with the likes (strengths) and dislikes (weaknesses) of a DBA. For example, here I have listed some of the DBA activities. They can be made more granular if required. Many more such activities can be added to the list.
  • Analyzing new application requirements and associated database changes
  • Converting a new database logical design to physical design
  • Creating new database
  • Storage capacity planning
  • SQL tuning
  • Configuration parameter tuning
  • Creating database standards and naming conventions
  • Performing database upgrades
  • Physical design of DDL changes
  • Implementing DDL changes
  • Performance diagnosis
  • Setting up performance monitoring
  • Troubleshooting database errors
  • Automating repetitive and mundane tasks
  • Exploring and implementing DBMS new features
  • Managing database scheduled jobs
  • Reacting to database user complains
  • Performing database security review

After listing the activities on such a granular level, each DBA should try to identify top 4 to 6 activities that really show the signs of being their strengths. The activities which show the signs opposite to that of strengths are the weaknesses and each DBA should also identify top 4 to 6 activities that are their weaknesses. In fact more activities will get added to the list while DBAs will be trying to identify their strengths and weaknesses. Once all the DBAs have identified their strengths and weaknesses, the responsibilities should be assigned in such a way that each DBA should be doing more of their strengths and less of their weaknesses.

A common concern about this approach is, if every DBA will be doing the interesting stuff, who will do the boring stuff. In my experience, interesting and boring words are very subjective. Something that is interesting to me does not have to be interesting for others also and vice versa. One can argue, who will find it interesting to resolve an alert in the middle of night. However, we should try to separate the actual activity with the circumstances under which we are doing it. We have to find out if the DBA hates resolving the alert or just because it’s in the middle of night. I agree there are few mundane things that most DBAs will hate doing. Wherever possible such mundane activities should be automated. This way, analyzing each activity carefully and assigning the responsibilities considering strengths and weaknesses of individual DBAs will result in a team where each DBA will do more of what they enjoy doing and will enhance the team productivity.

In reality, going through this whole exercise will not be as simple as it sounds here. For an individual DBA, just identifying his strengths and weaknesses will require lot of introspection over a period of several weeks. Some caution is required while identifying the strengths and weaknesses. Normally, we attach a hypothetical superiority or inferiority with each activity and we desire to do only the superior activities. We think that we will enjoy doing those activities and they are our strengths. However, our strengths are those which pass the litmus test of above mentioned 4 signs and not the activities which we think superior and desire to do it. Strengths should also not be confused with Skills. There are many activities that we are very skilled at because we have done it several times, however they might not necessarily reflect the 4 signs of strengths. This strength based approach of assigning roles and responsibilities within DBA team will require more introspection from each individual DBA as well as more managerial effort from the manager, however it’s worth doing.

If you are a DBA and your manager has no interest in strength based assignment of roles and responsibilities, you can still apply these techniques at least for you (or maybe along with some of your colleagues). You might be thinking that you do what your manager assigns to you. However, consciously or sub- consciously you also play a major role in deciding what activities you do more and what you do less. After identifying your strengths, you can try to volunteer more in the areas of your strengths and wherever possible reduce your involvement in the areas of your weaknesses.

Wednesday, January 13, 2010

Multi-terabyte

After a long gap, I am back again to share some of my thoughts. Leaving my Blog dry for so long makes me feel drained as well. However, I try to console myself thinking now it’s the age of information overload. Also, the growth of community websites in past few years is pouring so much information that it’s difficult for one to cope up with it. Hence, no harm slowing down my contribution to this information overload :)

Even though I was not posting anything on my Blog, I was not completely detached from it. In the meanwhile, I was tackling with the junk comments on my posts :) Yes, you read it correctly... junk comments, not junk emails. Since the email applications already have ways to filter out most of the junk emails, the junkies are targeting blogs now.

One day while looking at my blog, my eyes got stuck at a keyword used in my profile and triggered a chain of thoughts... this word was “multi-terabyte”. I recalled when I had written that profile, I did not mean more than 10 terabytes by it. Just 5 years ago from now, a 10 terabyte data warehouse was considered to be huge and working with such databases used to make me feel privileged. However, now a days I doubt if anyone will consider a smaller than 100 terabyte data warehouse huge. In fact, we have already started talking about petabyte size of data warehouses.

That naturally makes me think, will DB2 be able to support muti-petabyte warehouses in future with its current architecture. If not, what’s there in IBM’s roadmap to support such warehouses? Well, I have not heard much except the empty promises that current scalability features (data partitions, balanced configuration units etc.) should be able to tackle it. Beyond DB2 world, I do see some promising work and an important one to note would be Column-oriented DBMS.

Column-oriented DBMS is not a new concept, though recently it has started getting more traction. If you are hearing about it first time, you can get a quick overview of it on the Wikipedia. Also, you will find tons of articles regarding it if you google it. IBM has been downplaying column-oriented DBMS mentioning that it’s not suitable for all type of workloads in data warehousing environment, the companies who provide Column-oriented DBMS still have a very small footprint in the data warehousing market and so on. These arguments are basically deviating the discussion from the main point.

The important question is, will the majority of workload in data warehousing environment greatly benefit by Column-oriented DBMS approach or not. And the researches on this topic have answered this question affirmatively. Also, I have not come across any clear statement from IBM or IBMers disproving this fact. Well, I am not proposing that IBM should change DB2 from row-oriented to column-oriented or come up with a brand new column-oriented DBMS. However, it can provide an option for column-oriented tables in DB2. May be it will make more sense to have this option on table space level and all the tables under that table space will be stored column-oriented. Please don’t take me wrong, I don’t think this feature is going to be so easy to implement. I can anticipate its far reaching impact on DB2 core engine and optimizer, but so what? When IBM came up with hybrid XML/relational DB2 engine for native support of XML data, it was not a simple feature. If I recall correctly, IBM publicized it to involve 5 years of development time by a large development team.

The next important question is, is it worth investing so much effort in column-oriented table space feature. I think it is... because it will prepare DB2 for the next generation data warehouses. DB2 has been stronger in the data warehousing market compared to OLTP and this feature will help it become even stronger in the data warehousing market. However, I am curious to hear your thoughts on this.

Saturday, June 20, 2009

SQL Tips & Techniques- String Splitting

In my previous post SQL Tips & Techniques- String Aggregation, I discussed how to perform string aggregation. Recently, I received a question to do the reverse using SQL i.e. String Splitting.

Listing 1


For example, we have a table myTab2 with column values as shown above. As you can see, the string value in LIST column is a list of sub-strings separated with “, “. Now, we would like to split the string in LIST column and present the sub-strings in separate rows. Hence, the query should return two rows for CATEGORY = 1, three rows for CATEGORY = 2 and two rows for CATEGORY = 3.

Here is the query that performs the required string splitting.

Listing 2


The above query uses recursive SQL and it will return the following.

Listing 3


I learned the above use of recursive SQL from Knut Stolze’s developerWorks article Parsing Strings in SQL. If you know a different way to do the string splitting using SQL, please share it.

Saturday, April 11, 2009

DB2 Authentication & Password Encryption Method

Few days ago, I received an e-mail from my colleague with following error message

I verified the password of db2inst1 on OS level and the password “db2test” was correct. I verified the authentication related configuration parameters and everything looked okay. The authentication type was set to SERVER. The connection was working fine if we only run “db2 connect to test” and do not specify user and using keywords. The version of DB2 was 8.1 and the OS was SUSE Linux Enterprise Server 10.

You might be thinking how come I am still dealing with DB2 version 8.1. Well, as I have mentioned in my earlier posts, the company I work for (Stratavia Corporation) has software product for data center automation called
Data Palette. Data Palette still supports DB2 V8.1 and hence we have to test it on DB2 V8.1 also. Going back to the original problem, I approached our system administrator to figure out what is so unique about db2inst1 password that is causing the above authentication error. We found that the password encryption method used for db2inst1 was different than the other V8.1 instances where we don’t have the above mentioned authentication problem. On this problematic system, the password encryption method was “blowfish”. We changed it to “md5” as shown in the portion of “/etc/default/passwd” below. On SUSE Linux, “/etc/default/passwd” has the configuration parameter to control the password encryption method.


After changing the password encryption method, we set the password of db2inst1 and it was encrypted using md5 this time. On Linux systems, you can check the encrypted password in /etc/shadow file (you have to be root). The length of blowfish encrypted password is almost double than md5 encrypted password. Also, I think md5 encrypted password starts with $1 and blowfish encrypted password starts with $2.

After the above change, the authentication problem was gone. So it appears DB2 V8.1 (Fix pack 0) does not support authentication with password that is encrypted using blowfish encryption. Out of curiosity, I upgraded the same instance to V8.2 to test if blowfish password encryption will work or not and with V8.2 blowfish encryption worked fine. Hence, we should keep in mind that DB2 authentication (while using OS authentication) has dependency on password encryption method used by OS. The user password may work fine on the OS level, but DB2 authentication may still fail if DB2 does not support the password encryption method used by OS.

Monday, February 16, 2009

DB2 and EC2

Though irrelevant, there is a similarity of alphabetical pattern between DB2 and EC2. E comes just after D and C comes just after B in the alphabet. May be this similarity aroused my interest in EC2... J Also, IBM and Amazon have partnered together to deliver DB2 in Amazon EC2 (Elastic Compute Cloud) environment.

Cloud computing, the biggest buzz word in current date, is no more perceived as mere hype. It has already started helping small startup companies. There are new businesses emerging on top of cloud computing infrastructure. Gradually more and more companies will start embracing the cloud computing.

Though I have been hearing about cloud computing for over a year, I never bothered to think about how similar or different it would be managing DB2 databases hosted in cloud computing environment. When I read the IBM’s announcement (actually followed the link from Anant Jhingran’s blog post), it crossed my mind that very soon we DBA’s may have to deal with the DB2 instances hosted in the cloud computing environment. Suddenly, several questions started arising in my mind. Will it be accessible through web browser only or we can still use our favorite SSH client or Remote Desktop (in case of Windows)? How will be the database physical design? Can we also access these virtual servers through VPN and so on...?

Out of curiosity, I thought of signing up for the Amazon’s service and get a feel of EC2. Looking at their pricing, it did not appear to cost much just to get a feel of it. On a second thought, I decided to go through their documentation first. The documentation is concise and to the point. It helped to clear the clouds over my understanding of Elastic Compute Cloud.

Here is a very high level summary of what I learned about EC2 from their documentation.
  1. The virtual servers in EC2 environment are basically the running instances of AMI (Amazon Machine Image). AMI contains all the software, including OS and associated configuration settings, applications, libraries etc.
  2. There are already many existing AMI (free as well as paid). Also, new AMI can be created from scratch or based on an existing AMI. However, new AMI has to be saved on Amazon S3 (Simple Storage Service) and there is a charge for this storage.
  3. There are different types of instances based on CPU, Memory, Storage and I/O requirements and accordingly Amazon has different pricing for each type of instance.
  4. AMI instances are not persistent. You lose all the changes when you shutdown your OS or terminate the AMI instance.
  5. For all the online data that requires persistence (for example, a DB2 database), they have a different solution. It’s called Elastic Block Store (EBS). EBS is storage volume that can be attached to the host (running instances of AMI) and it can either be used as raw device or a file system can be created on it.
  6. Snapshots of EBS can be created on the Amazon S3 (Simple Storage Service). EBS snapshot can be used to launch new EBS volumes using the previous snapshot as the starting point of those new volumes.
  7. Static IP addresses can also be assigned to instances. They are called Elastic IP address.
  8. We can access the servers hosted in EC2 environment using SSH client or Remote Desktop.

I like the ease of provisioning, server downsizing and upsizing available in EC2 environment. Also, it appears to me that set up and maintenance of disaster recovery and business continuity solutions will be relatively easier in EC2 environment. Testing the additional computing power (capacity planning) for increased workload will be much easier and cost effective. We don’t have to make permanent investment in computing power and then later realize that the investment did not solve the capacity problem.

Having said all the good things about EC2, I do agree that we will come across several unpleasant aspects of it when we start using it. I found some of the experiences discussed on Colin Percival’s blog.

In general, one of the big concerns about cloud computing is company policies and security issues related with storing company’s data outside company network. Though EC2 appears to have reasonable security provision, I am not an expert on network security and hence I will abstain from making any comment on security. However, if cloud computing provides or will provide robust security, I would anticipate revisions in company policies over a period of time to adapt to the new computing environment.

Tuesday, January 13, 2009

Where a DB Request Spends Time?

While analyzing slow response or poor database performance, you might be curious to know where a database request spends time. This information will feed to database performance intelligence and guide the tuning effort in the right direction. However, I doubt if anyone ever found a satisfactory answer to this question for a DB2 database.

Basically, a database request may spend time either waiting for a service (wait time) or being serviced (service time). In fact this applies to any request to a computer system. The total time spent by a database request should be sum total of all the wait times and the service times for that request. Also, a database request may spend time inside the database system as well as outside the database system (e.g. Network). For a database request, the monitoring features of a database system should ideally provide all these wait times and service times spent inside database system.

In this post I will investigate the monitoring info available through db2batch and snapshot monitoring in attempt to identify the individual components that make up the total time spent by a SQL statement. First, I will investigate the monitoring info captured by db2batch. Listing 1 shows the SQL script I used for db2batch test


Listing 1


In case you are curious about the definition of table t1, it has the same structure as syscat.columns and I inserted all the rows from syscat.columns four times into t1. Also, t1 is created under a DMS tablespace with the associated buffer pool of just 1000 4K pages.

PERF_DETAIL 3 instructs db2batch to capture summary of monitoring information. Listing 2 shows the db2batch output after filtering out all the lines not related with time from the monitoring info


Listing 2



The SQL statement took total 130.567 seconds. Out of which Agent CPU Time was 124.36 seconds, but what about the remaining time (6.207 seconds). Even if we assume that buffer pool read time is not inclusive in Agent CPU Time, still it does not sum up to total elapsed time.

Next I will investigate the DB2 snapshot monitoring and identify any time related stats. Ideally, a database request should correspond to a statement. However, application level snapshot provides more time related stats, hence I will present a test example using application snapshot.

I created a test script as shown in Listing 3:


Listing 3


I ran the script with the time command as shown below


Listing 4



Here is the content of test.out


Listing 5


Listing 6 shows the time related lines from the application snapshot


Listing 6


Now let’s try to analyze the output of this test. The script test.sh took 2 minutes and 11.12 seconds (131.12 seconds). The query was run locally on the database server to avoid any network time. Also, the query returns just a single row to minimize the time associated with sending the result set to standard output. That’s the reason “Elapsed time of last completed uow” from application snapshot is pretty close to the time captured by the time command. Even the difference of fraction of a second is mostly because of other statements in test.sh (connect, get snapshot, terminate etc.).

Since the statement was run in auto-commit mode, the UOW comprises of single statement. Thus the SELECT statement took 130.9 seconds. Now let’s try to break up the 130.9 seconds and identify the individual components. We see that User CPU Time by agents is 124.78 seconds. Apart from that, the following time components sum up to less than a second


Listing 7


Adding them all to User CPU time will still be less than 126 seconds. So where was the remaining 5 seconds spent? In fact, many of the time components shown in Listing 7 (sort time, buffer pool read time etc.) might be inclusive in User CPU Time. In any case, we don’t have any accountability of at least 5 seconds. This gap of unaccountable time will be even longer for more complex queries. Also, note that all the time components shown in Listing 7 are not even available at the statement level where it makes more sense.

With these simple examples, I just wanted to show that DB2 monitoring does not provide the complete picture of all the time spent inside the database system. I have reached to the same conclusion even with the event monitoring. Ideally, the database monitoring should provide the total time spent by a statement and its individual components in a parent-child format. I would love to hear from you if you have any more insight or info regarding the time spent by a database request inside DB2.
